Detailed astigmatism evaluation across the complete optical system
Precise astigmatism characterization is critical for understanding image quality and system performance. Advanced Astigmatism Analysis enables a detailed evaluation of astigmatism behavior across the full optical system, systematically analyzing each configuration, wavelength, and field point.
The tool extracts both Zernike astigmatism and Seidel astigmatism values, providing comprehensive insight into third-order and primary aberrations. It computes astigmatism with user-defined increments over field points and pupil positions and outputs the results for further evaluation.
Key Features:
- Comprehensive System Analysis: Evaluates astigmatism for each configuration, wavelength, and field point in the optical design.
- Zernike and Seidel Astigmatism: Calculates both Zernike-based astigmatism and classical Seidel astigmatism.
- Fine Sampling Control: Supports user-defined increments for field and pupil sampling.
- Graphical Visualization: Generates intuitive plots showing astigmatism trends across the system.
- Data Export: Saves detailed numerical results in text files for further analysis and reporting.
- MATLAB Integration: Summary information is presented directly in the MATLAB command window for quick review.
With Advanced Astigmatism Analysis, optical engineers can perform an in-depth evaluation of astigmatism across the full optical design, ensuring better control over optical performance and system optimization.
Looking for additional functionality? We offer free customization. Whether you need specific plots, analysis features, or other enhancements, we’ll tailor this tool to your requirements—at no extra development cost.
Tool Features
| Feature | Description |
|---|---|
| Simulation Types | Zernike astigmatism Seidel astigmatism Users can enable or disable each simulation type individually, allowing full customization of the analysis process. |

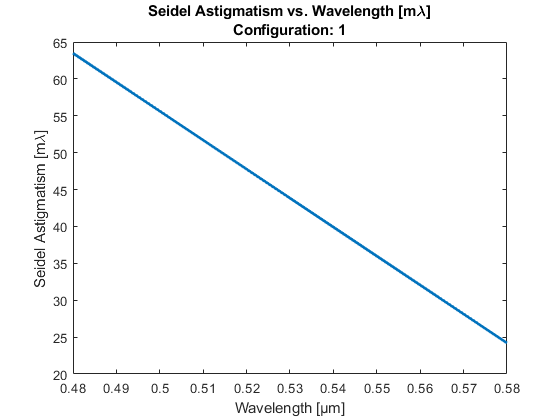

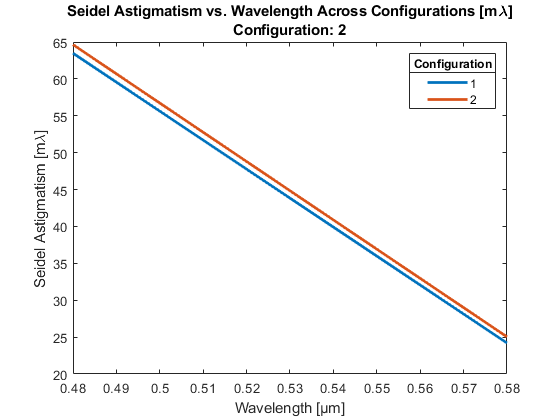

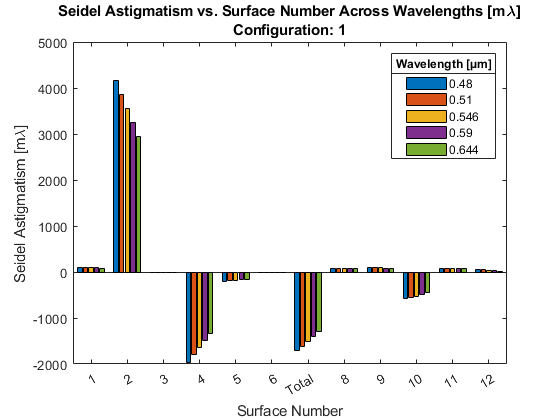

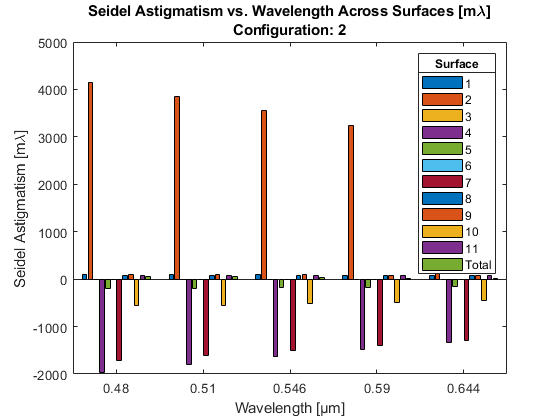

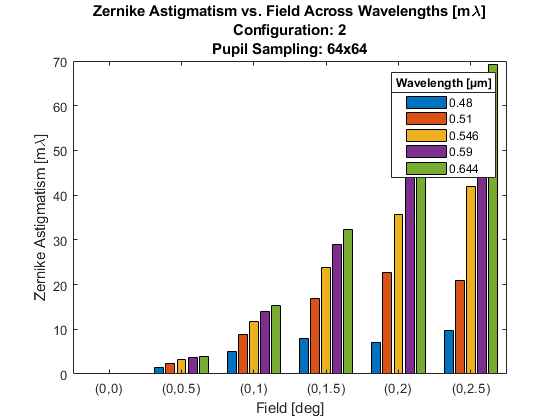

| Output Figures | Zernike Astigmatism vs. Wavelength Across Field Points Zernike Astigmatism vs. Field Across Wavelengths Maximum Zernike Astigmatism vs. Configuration Zernike Astigmatism vs. Field Across Wavelengths Zernike Astigmatism vs. Wavelength Across Field Points Zernike Astigmatism vs. Configuration Across Wavelengths Zernike Astigmatism vs. Configuration Across Fields Maximum Seidel Astigmatism vs. Configuration Seidel Astigmatism vs. Wavelength Seidel Astigmatism vs. Wavelength Across Configurations Seidel Astigmatism vs. Surface Number Across Wavelengths Seidel Astigmatism vs. Wavelength Across Surfaces Seidel Astigmatism vs. Configuration Across Wavelengths Seidel Astigmatism vs. Wavelength Across Configurations |
| Export Formats | MATLAB Formats: FIG, M, MFIG Standard Images: JPEG, PNG, TIFF, TIFFN, BMPMONO, BMP, BMP16M, BMP256 Vector Graphics: META Scientific & Data Formats: HDF, PBM, PBMRAW, PGM, PGMRAW, PPM, PPMRAW, PCXMONO, PCX24B, PCX256, PCX16 Users can enable or disable each output format individually, allowing full customization of the export process. |
