Automated MTF Evaluation Across Multiple Files

Multi-File Optical Analysis – MTF streamlines the evaluation of Modulation Transfer Function (MTF) by automatically processing multiple optical design files. This tool extracts MTF values, calculates yield, and provides a comprehensive overwiev of system performance.

Key Features:

Supports all MTF Functions in Zemax

Geometric MTF (average, sagittal, tangential)

Modulation Square-Wave Transfer Function (average, sagittal, tangential)

Diffraction Modulation Transfer Function (average, sagittal, tangential)

Huygens Modulation Transfer Function (average, sagittal, tangential)

Comprehensive Analysis

Scans all files, configurations, wavelengths, and fields separately

Outputs results both graphically and as text

Efficient & Automated Workflow

Batch process multiple optical design files (.zmx, .zos)

Extract MTF values without manual effort

Visualize trends and assess yield for quick decision-making

By automating MTF analysis across multiple files, this tool enhances efficiency and enables data-driven decision-making in optical design.

Looking for additional functionality? We offer free customization. Whether you need specific plots, analysis features, or other enhancements, we’ll tailor this tool to your requirements—at no extra development cost.

Order Multi-File Optical Analysis - Distortion with one-month free trial

Details of Multi-File Optical Analysis - MTF

Features Standard Version
Simulation Types

Geometric MTF (Average, Sagittal and Tangential)

Modulation Square-Wave Transfer Function (Average, Sagittal, Tangential)

Diffraction MTF (Average, Sagittal, Tangential)

Huygens MTF (Average, Sagittal, Tangential)


Users can enable or disable each simulation type individually, allowing full customization of the analysis process.
Output Figures

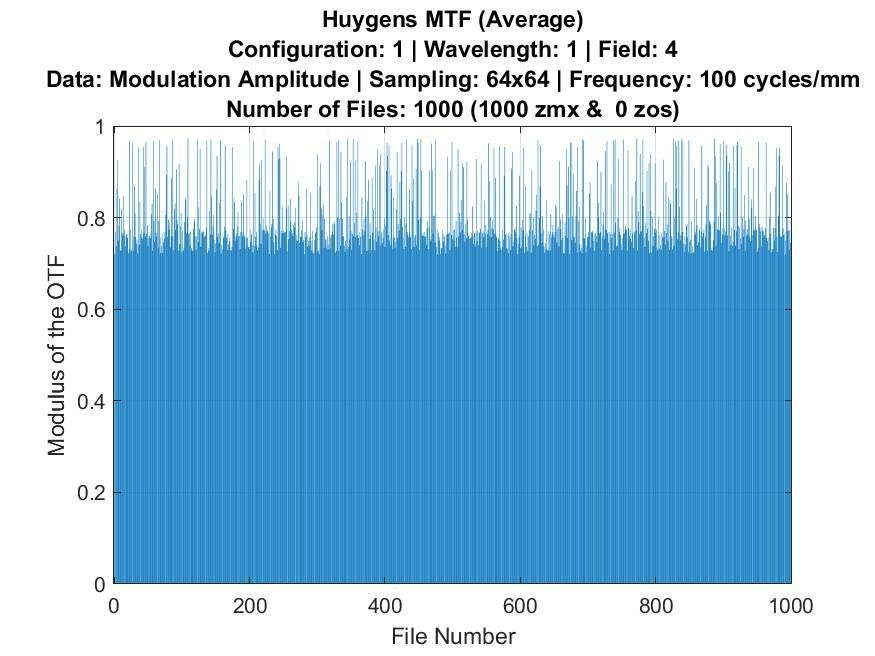

MTF distribution across all files - for each wavelength and field

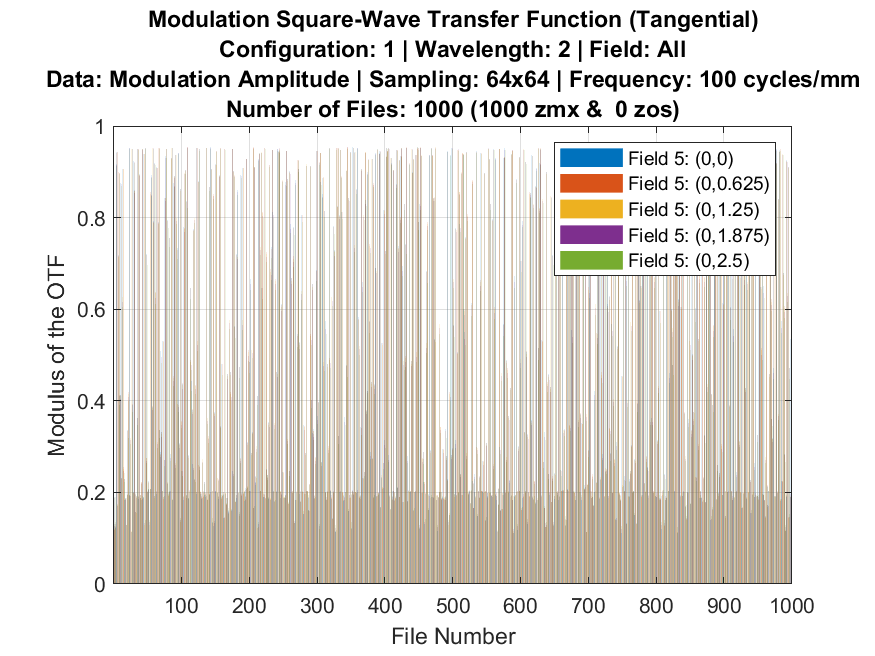

MTF distribution across all files - field-resolved for each wavelength

MTF distribution across all files - wavelength-resolved for each field

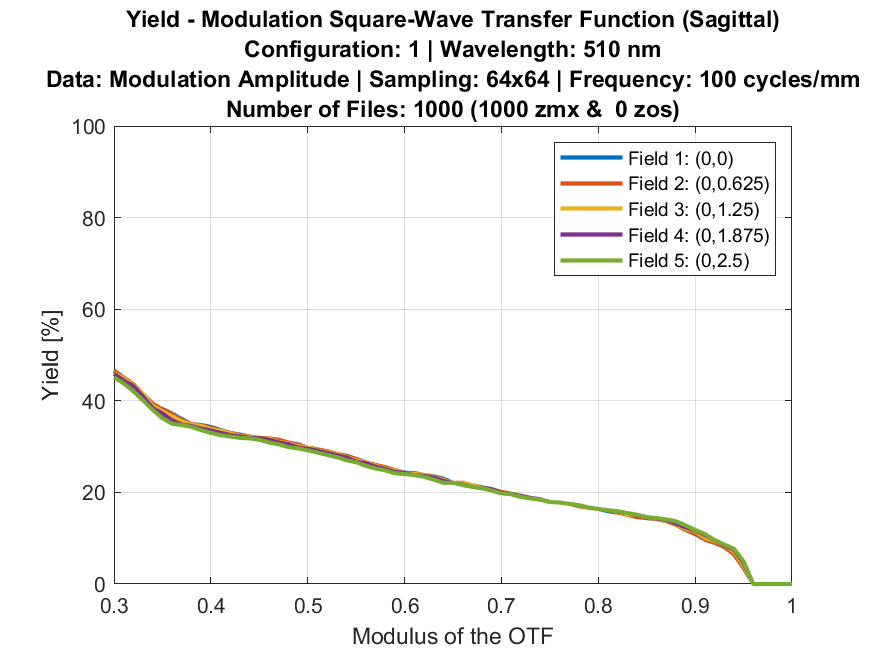

MTF yield across all files - field-resolved for each wavelength

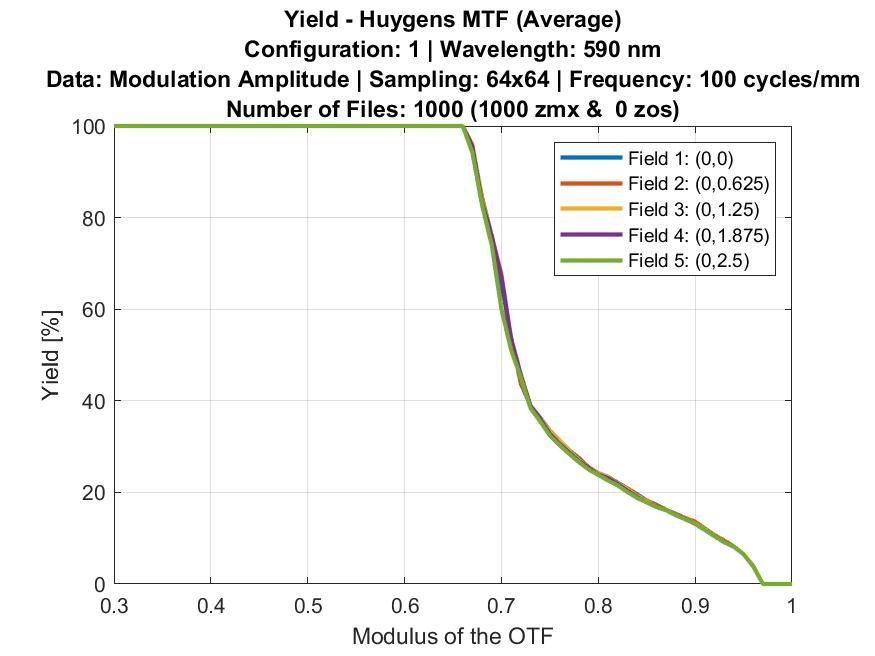

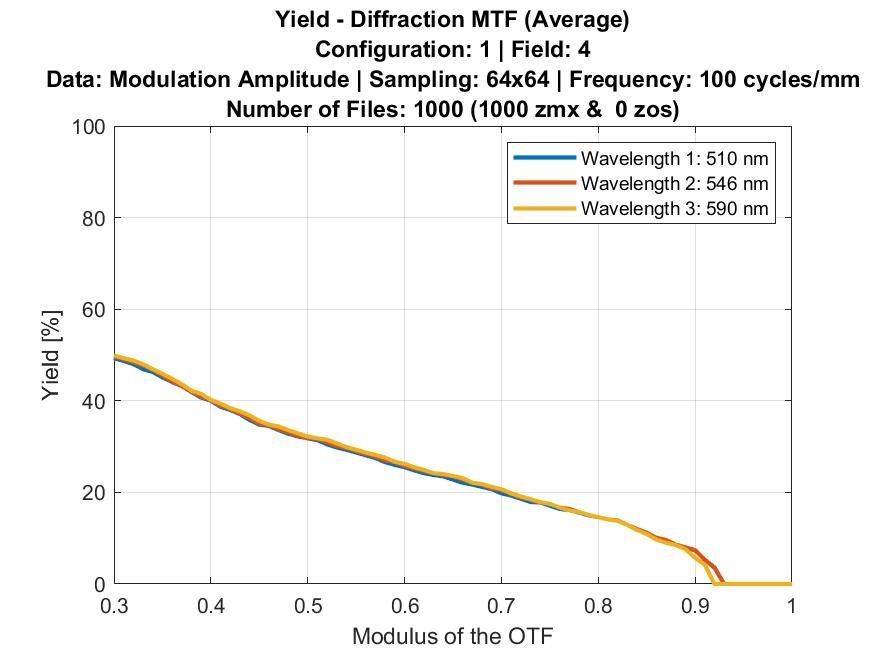

MTF yield across all files - wavelength-resolved for each field
Export Formats

MATLAB files (".fig", ".m", ".mfig"), JPEG, PNG, TIFF*, Enhanced metafile**, BMP***, HDF, PBM****, PCX*****, PGM****, PPM****


Users can enable or disable each output format individually, allowing full customization of the export process.
Availibility Immediate
License Model Annual Lease (Linked to Zemax Serial Number)
Support Included during lease term 24/7, 365-day support
Updates Included during lease term
Installation Support ✔
Compatible Versions - All Zemax OpticStudio versions
- All Ansys Zemax OpticStudio versions
Connection Mode

- Standalone Application

- Interactive Extension
Price

$1,800 + VAT per year
Discounts 5% off for each additional license (up to 50% total)
Payment Terms Net 30 Days
Payment Methods

Bank Transfer
Legend *: compressed & not compressed**: Windows only***: Monochrome, 16m, 8-bit****: plain format & raw format*****: 1-bit, 24-bit color (three 8-bit planes), 8-bit newer color (256 color), older color (EGA/VGA 16-color)
