Zemax OpticStudio Tool: Multi-File Optical Analysis - Distortion

Zemax OpticStudio Tool: Multi-File Optical Analysis - Distortion

Efficiently analyze distortion across multiple Zemax OpticStudio files

Understanding distortion behavior across multiple optical designs is essential for performance evaluation and optimization. Multi-File Optical Analysis – Distortion streamlines this process by extracting distortion data from multiple Zemax OpticStudio files (.zmx and .zos), displaying the results graphically, and saving them for further analysis.

Key Features:

Batch Processing: Analyze multiple optical designs in a single workflow.

Distortion Data Extraction: Automatically reads distortion values from Zemax files.

Graphical Visualization:  Displays distortion trends through intuitive plots.

Data Export: Saves extracted values for deeper evaluation and reporting.

MATLAB Integration: Summary statistics are presented directly in the MATLAB command window.


With this tool, optical engineers can efficiently assess distortion variations across multiple designs, identify trends, and make data-driven decisions to optimize optical performance.

Looking for additional functionality? We offer free customization. Whether you need specific plots, analysis features, or other enhancements, we’ll tailor this tool to your requirements—at no extra development cost.

Order Multi-File Optical Analysis - Distortion with one-month free trial

Details of Multi-File Optical Analysis - Distortion

Features Standard Version
Simulation Types

Distortion Maximum (Percantage and Absolute)

Distortion ABCD

Distortion Calibrated

General Distortion

Distortion


Users can enable or disable each simulation type individually, allowing full customization of the analysis process.
Output Figures

Distortion across all files - for each wavelength and field

Distortion across all files - field-resolved for each wavelength

Distortion across all files - wavelength-resolved for each field

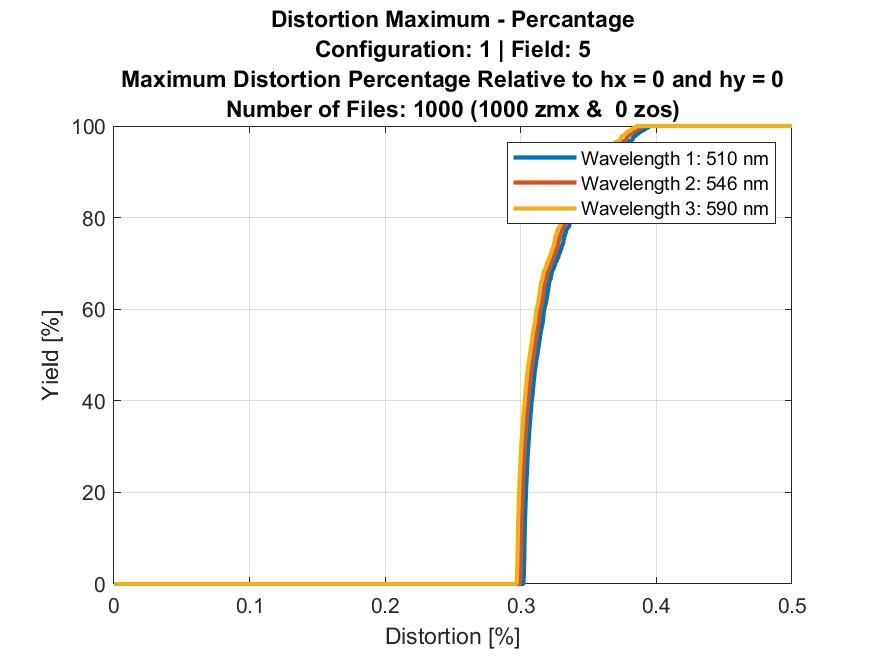

Distortion yield across all files - field-resolved for each wavelength

Distortion yield across all files - wavelength-resolved for each field
Export Formats

MATLAB files (".fig", ".m", ".mfig"), JPEG, PNG, TIFF*, Enhanced metafile**, BMP***, HDF, PBM****, PCX*****, PGM****, PPM****


Users can enable or disable each output format individually, allowing full customization of the export process.
Availibility Immediate
License Model Annual Lease (Linked to Zemax Serial Number)
Support Included during lease term 24/7, 365-day support
Updates Included during lease term
Installation Support ✔
Compatible Versions - All Zemax OpticStudio versions
- All Ansys Zemax OpticStudio versions
Connection Mode

- Standalone Application

- Interactive Extension
Price

$1,800 + VAT per year
Discounts 5% off for each additional license (up to 50% total)
Payment Terms Net 30 Days
Payment Methods

Bank Transfer
Legend *: compressed & not compressed**: Windows only***: Monochrome, 16m, 8-bit****: plain format & raw format*****: 1-bit, 24-bit color (three 8-bit planes), 8-bit newer color (256 color), older color (EGA/VGA 16-color)

Details of Multi-File Optical Analysis - Distortion

Features Standard Version
Simulation Types

Distortion Maximum (Percantage and Absolute)



Distortion ABCD



Distortion Calibrated



General Distortion



Distortion



Users can enable or disable each simulation type individually, allowing full customization of the analysis process.
Output Figures

Distortion across all files - for each wavelength and field



Distortion across all files - field-resolved for each wavelength



Distortion across all files - wavelength-resolved for each field



Distortion yield across all files - field-resolved for each wavelength



Distortion yield across all files - wavelength-resolved for each field
Export Formats

MATLAB files (".fig", ".m", ".mfig"), JPEG, PNG, TIFF*, Enhanced metafile**, BMP***, HDF, PBM****, PCX*****, PGM****, PPM****


Users can enable or disable each output format individually, allowing full customization of the export process.
Availibility Immediate
License Model Annual Lease (Linked to Zemax Serial Number)
Support Included during lease term 24/7, 365-day support
Updates Included during lease term
Installation Support ✔
Compatible Versions - All Zemax OpticStudio versions
- All Ansys Zemax OpticStudio versions
Connection Mode - Standalone Application
- Interactive Extension
Price

$1,800 + VAT per year
Discounts 5% off for each additional license (up to 50% total)
Payment Terms Net 30 Days
Payment Methods

Bank Transfer
Legend *: compressed & not compressed**: Windows only***: Monochrome, 16m, 8-bit****: plain format & raw format*****: 1-bit, 24-bit color (three 8-bit planes), 8-bit newer color (256 color), older color (EGA/VGA 16-color)

Order Multi-File Optical Analysis - Distortion with One-Month Free Trial
